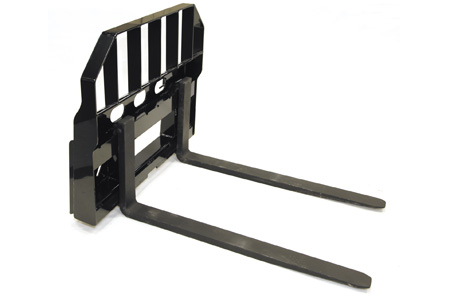

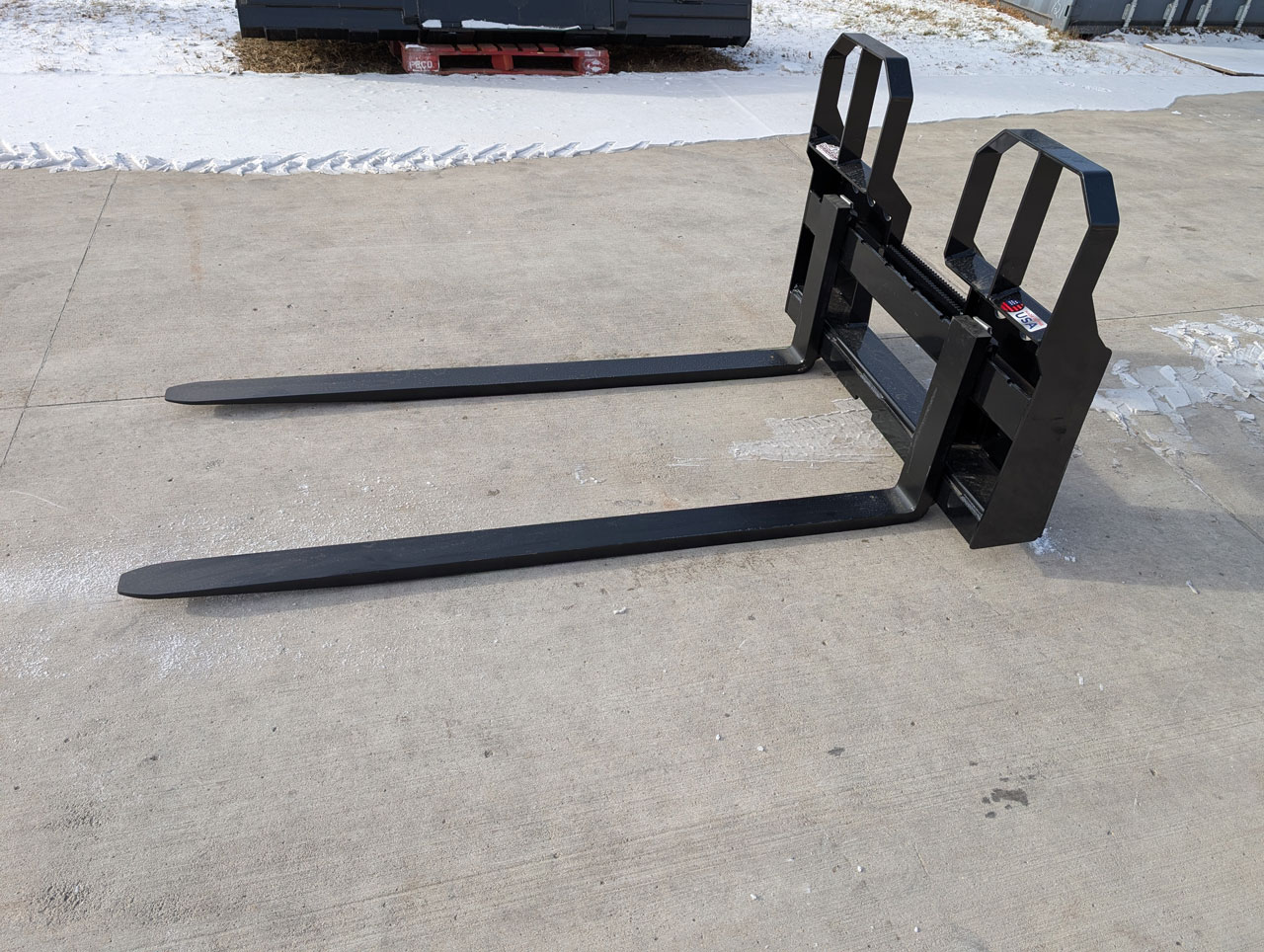

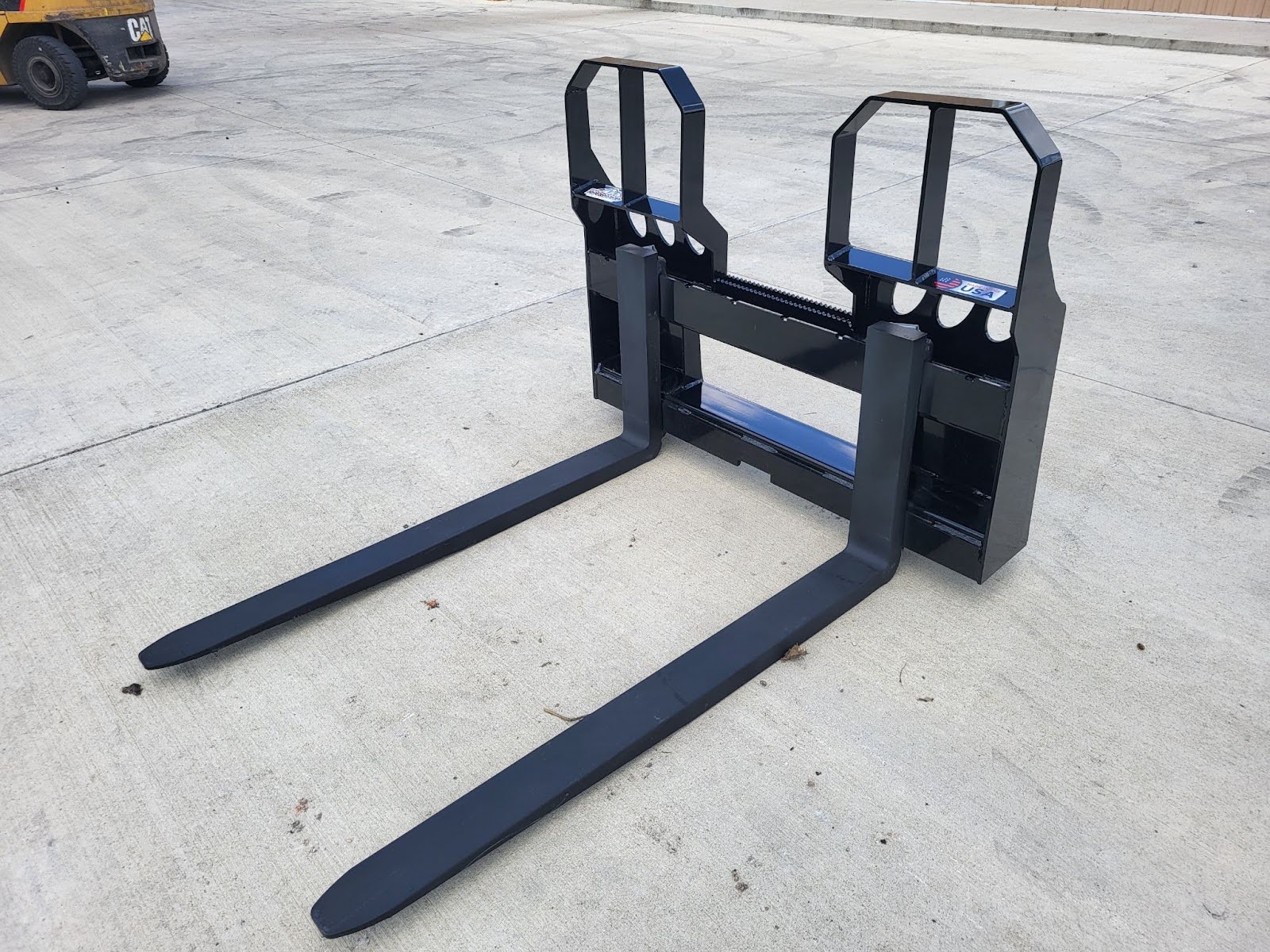

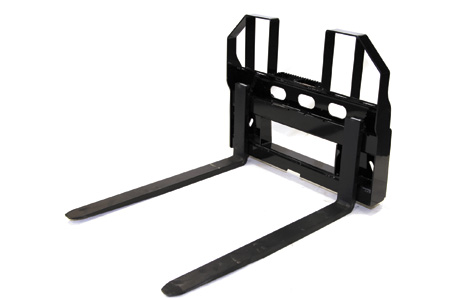

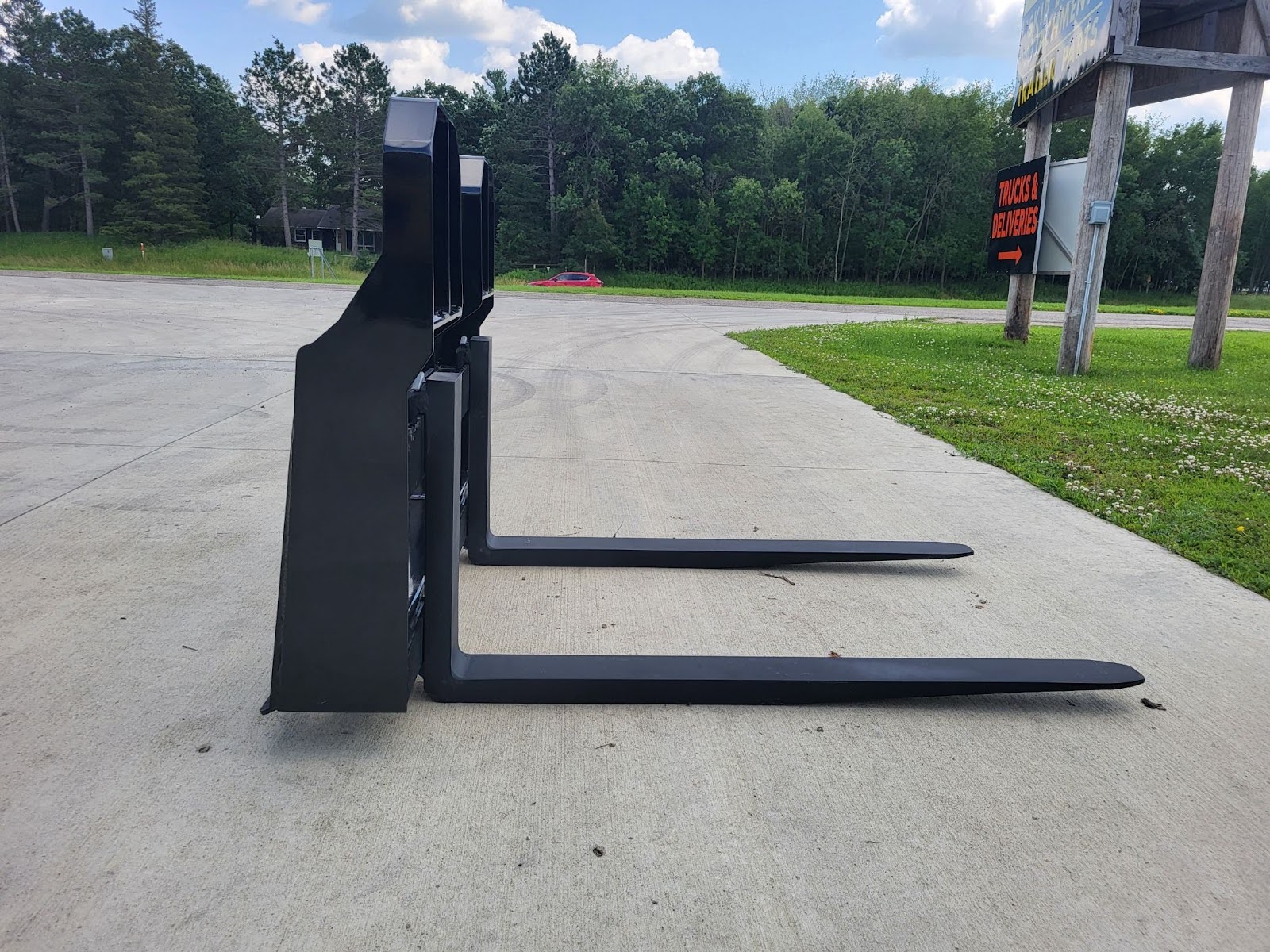

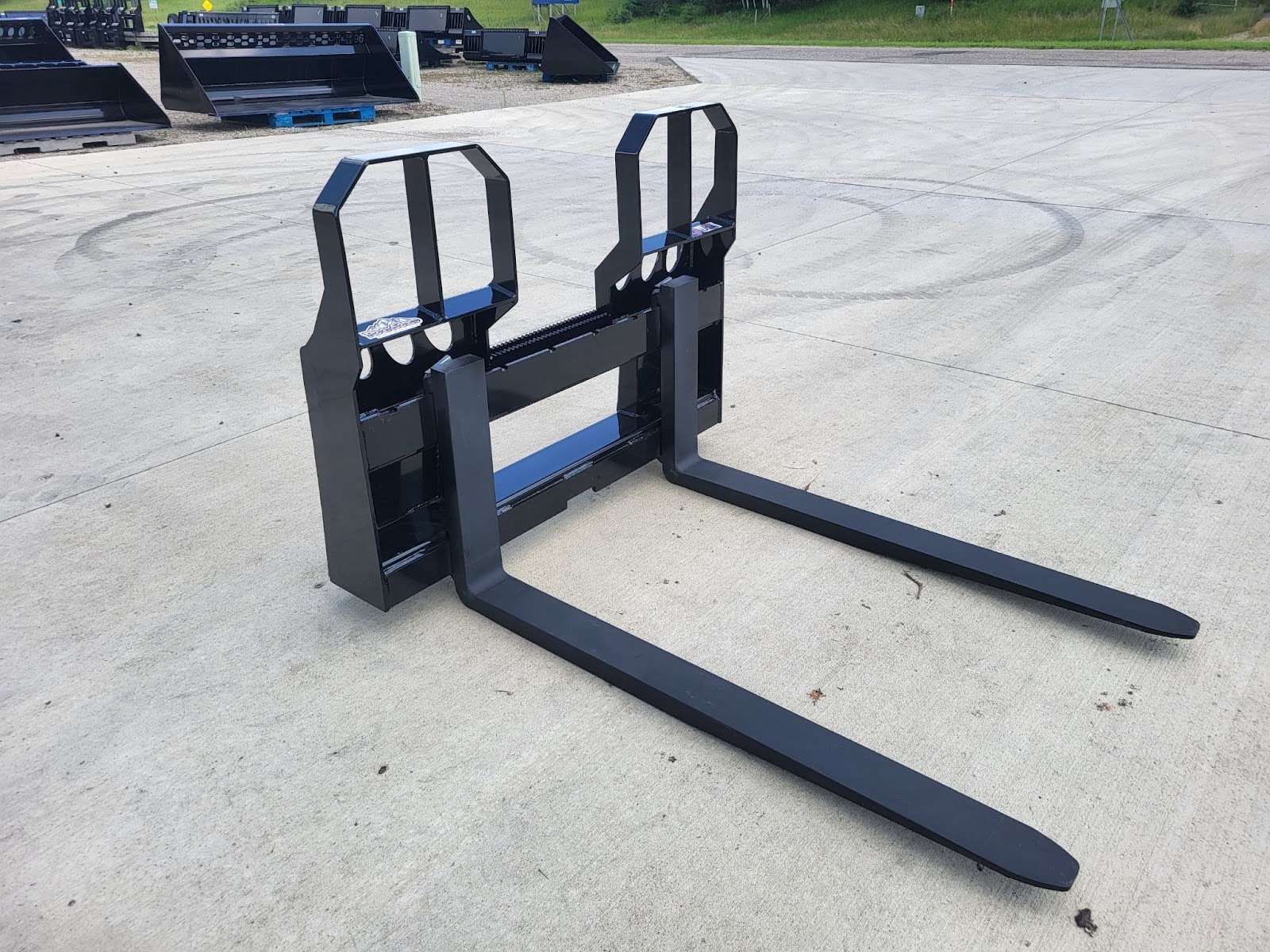

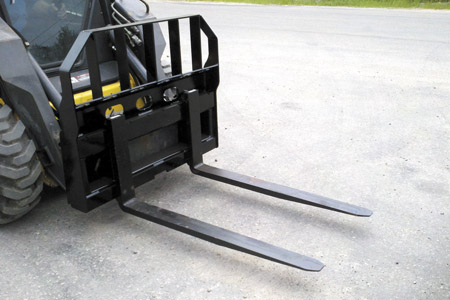

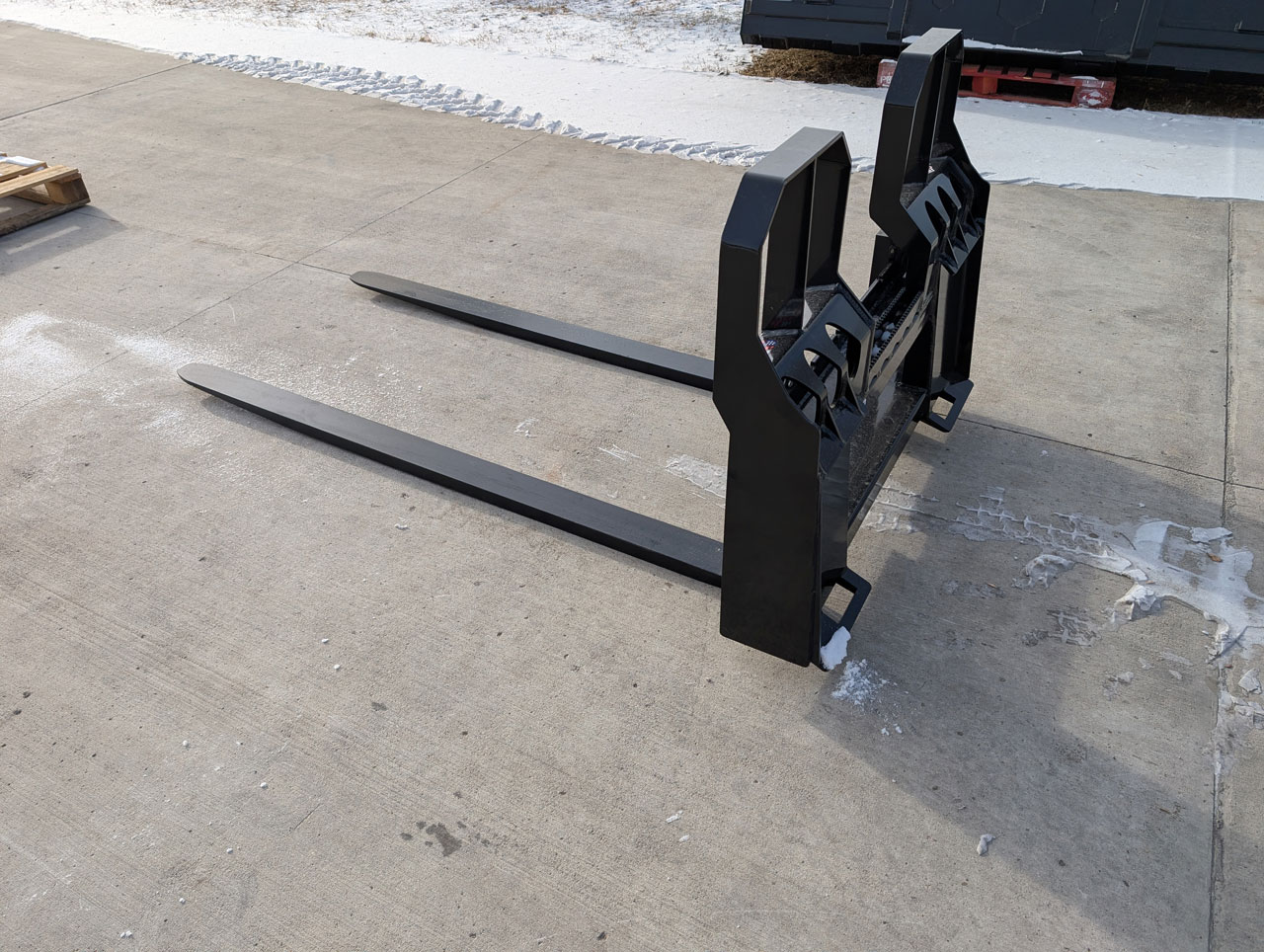

Standard Walk-Thru Pallet Forks

Model #90001W

Durable construction for years of use

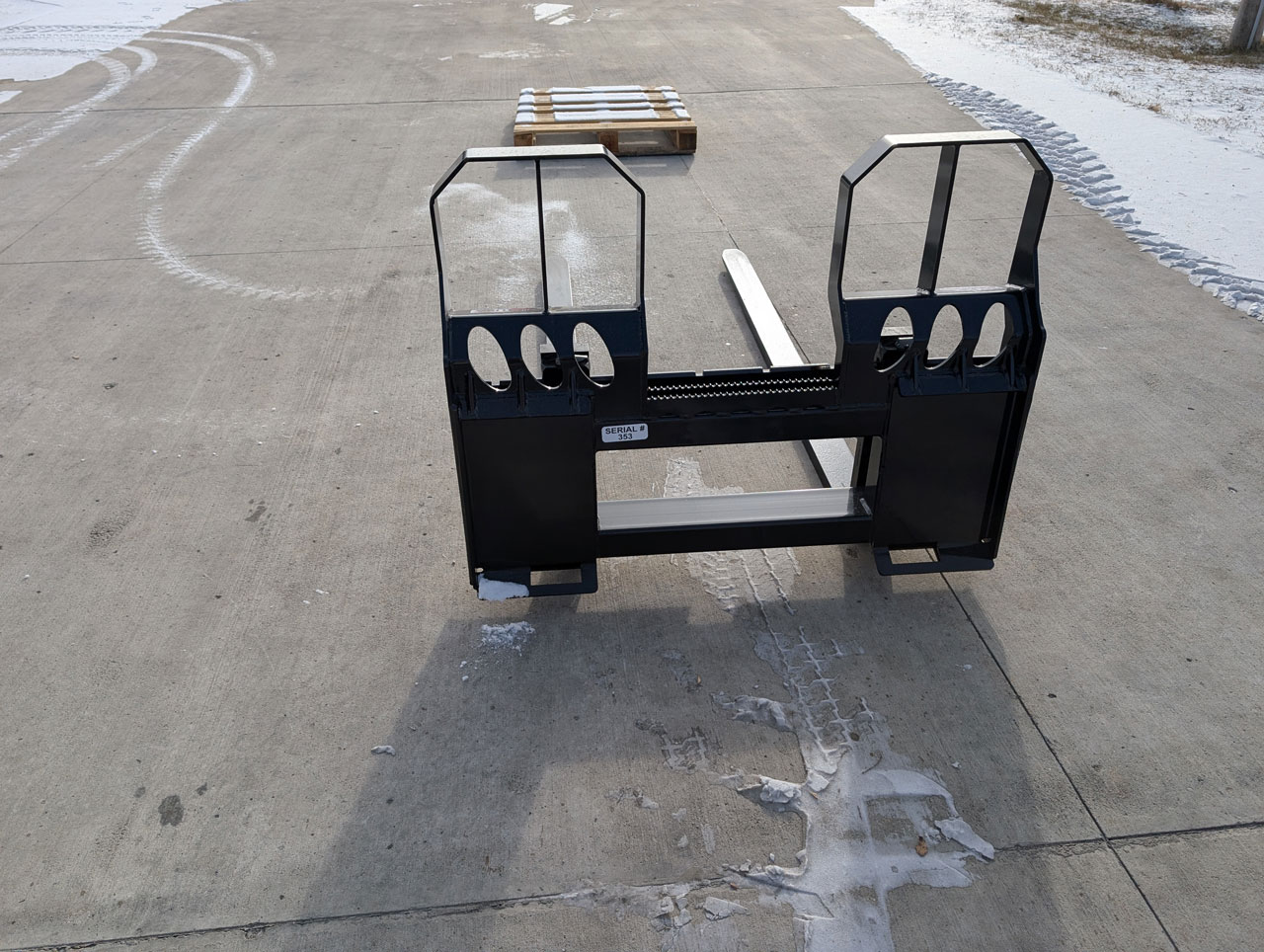

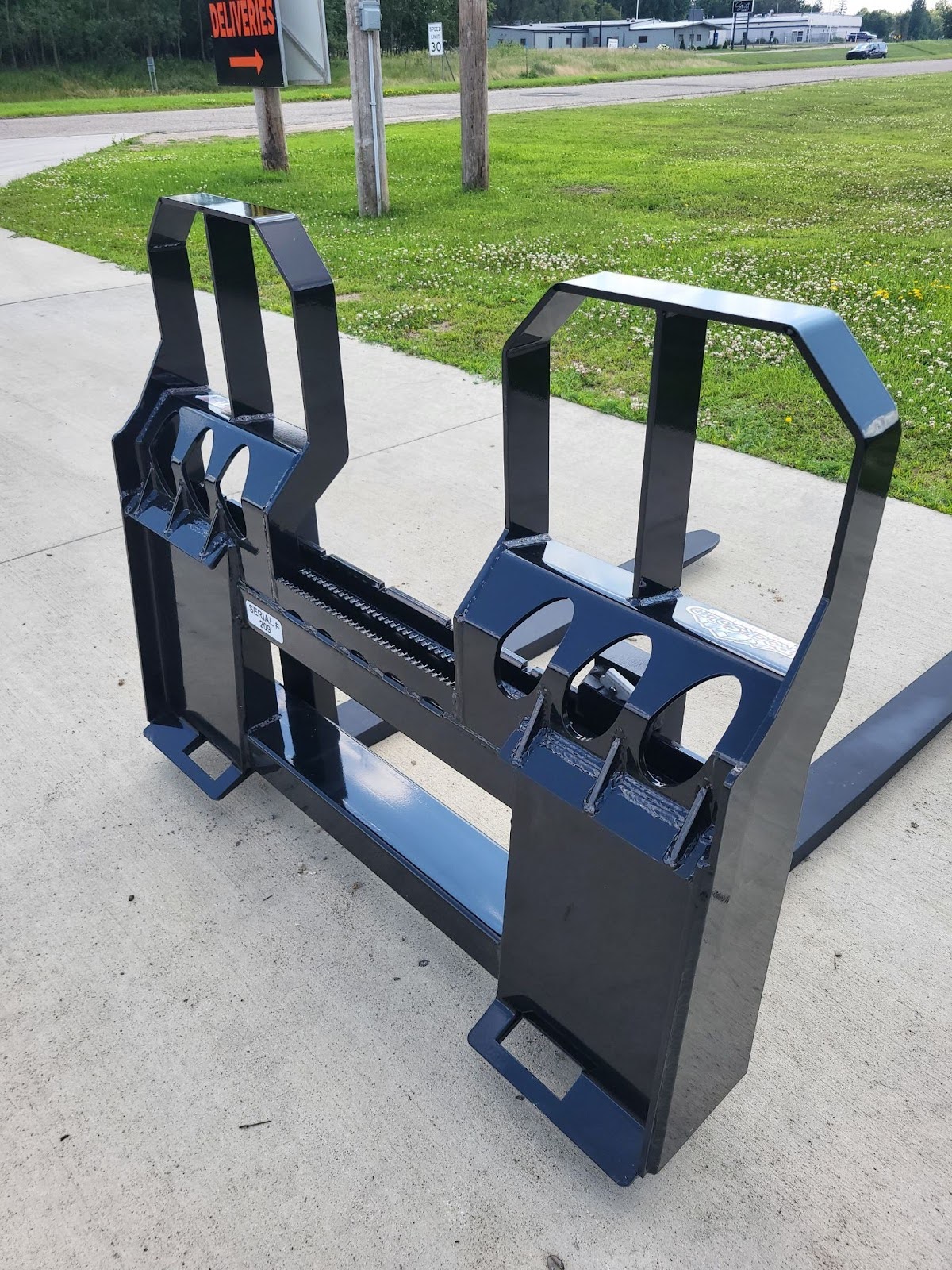

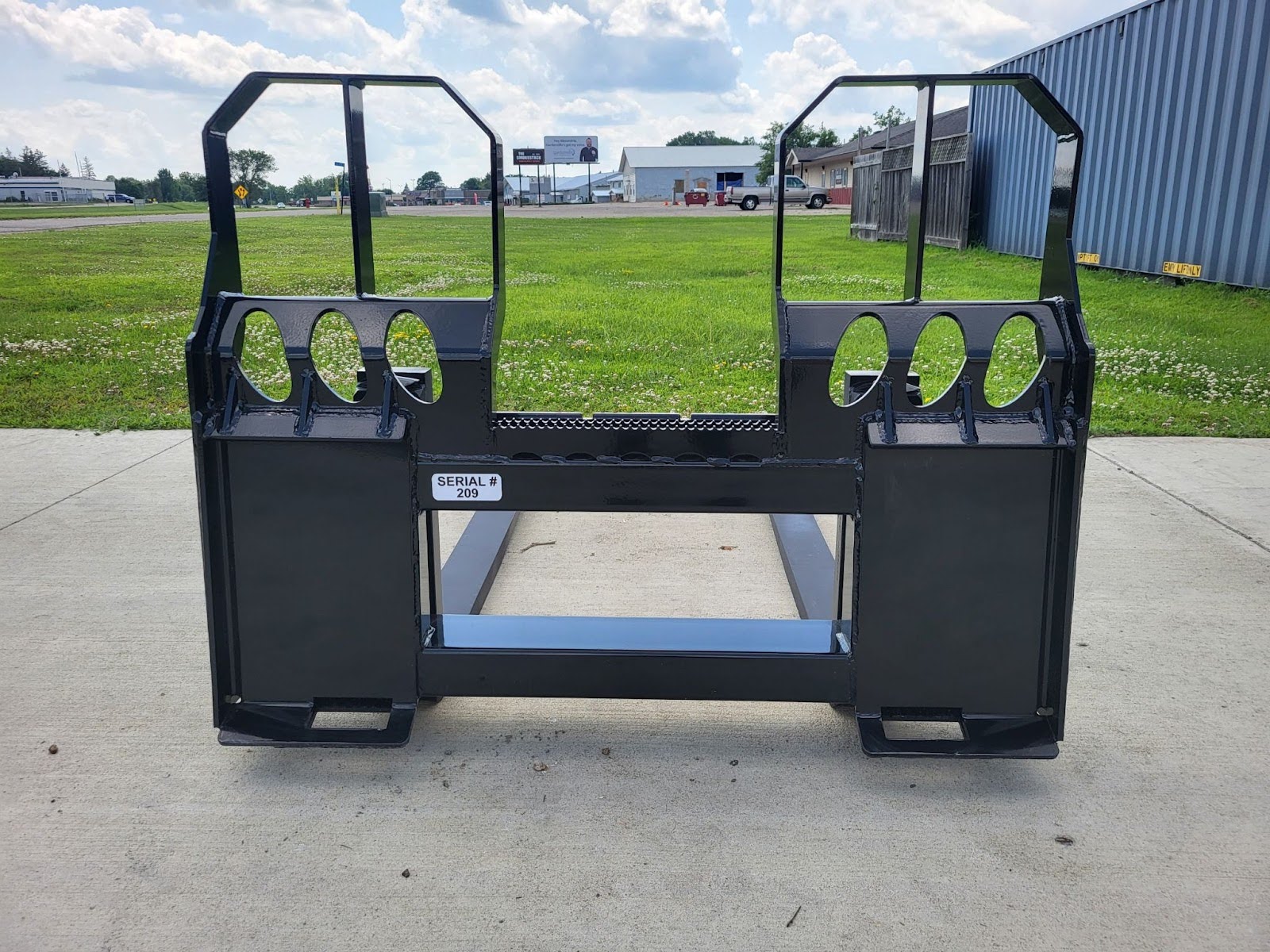

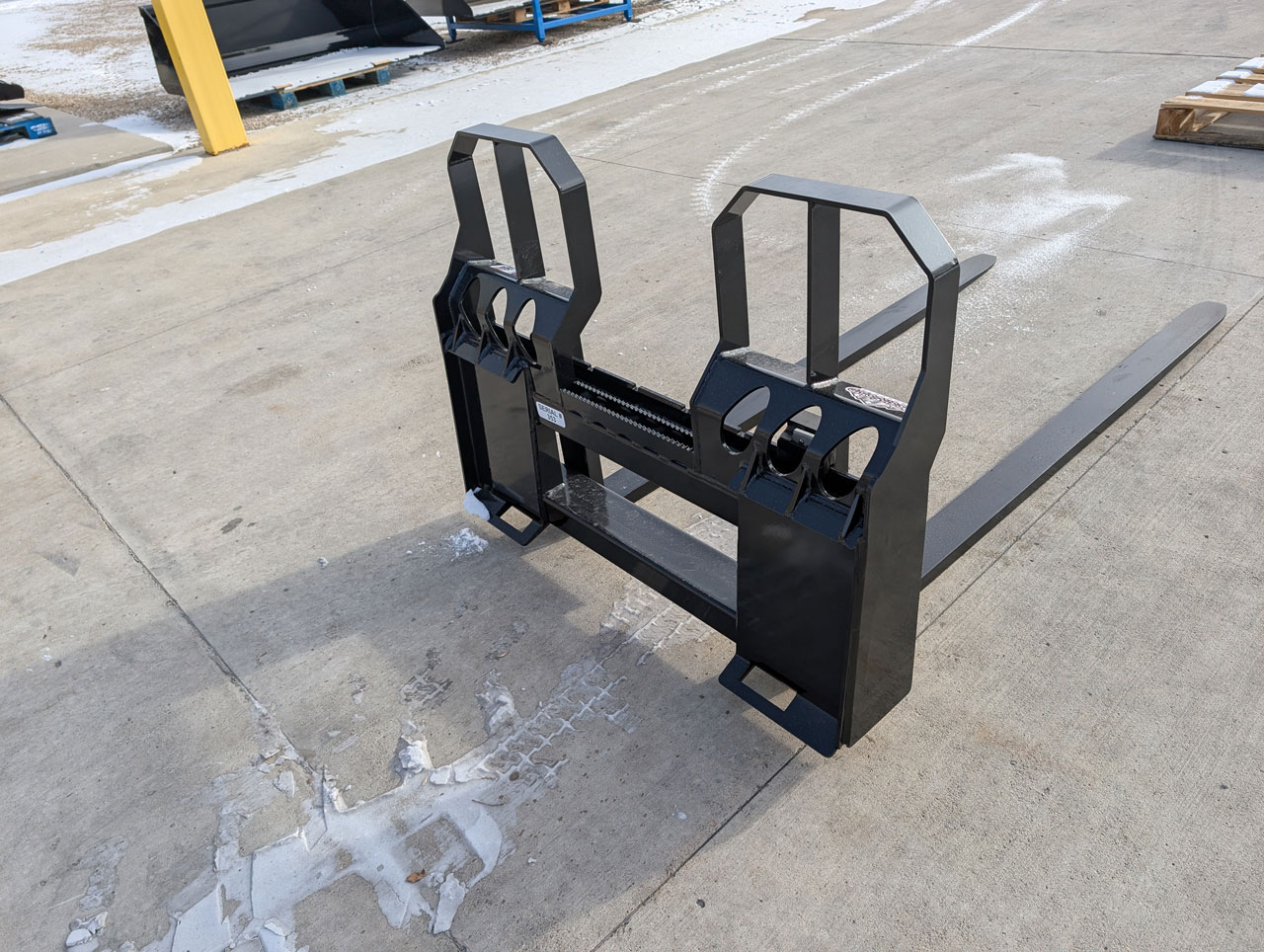

Open and removable brick guard allows for clear vision of load

Ideal for moving materials around the job site

Painted using a 2 part Urethane process for an exceptional finish

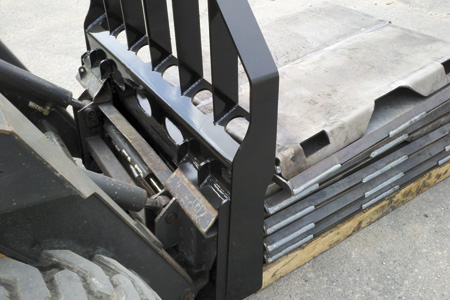

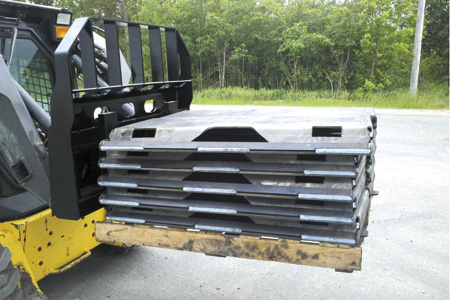

Designed for use with palletized material only. Keep fork tines as wide as pallet allows.

Lift limit is determined by fork capacity or loader capacity, whichever is less.

Capacity is based on no more than 1/2 load per fork and load no more than 1/2 way out on each form.

Specifications

Overall Width

Overall Height

Depth

Top and Bottom Rails

Fork Length

Fork Width

Fork Thickness

Tines

Estimated load capacity at 24" load center (per pair)

Weight

45"

42"

9½"

3/8" Grade 50

48"

4"

1-3/8"

Call II Part #80489

4,400 lbs

345 lbs
