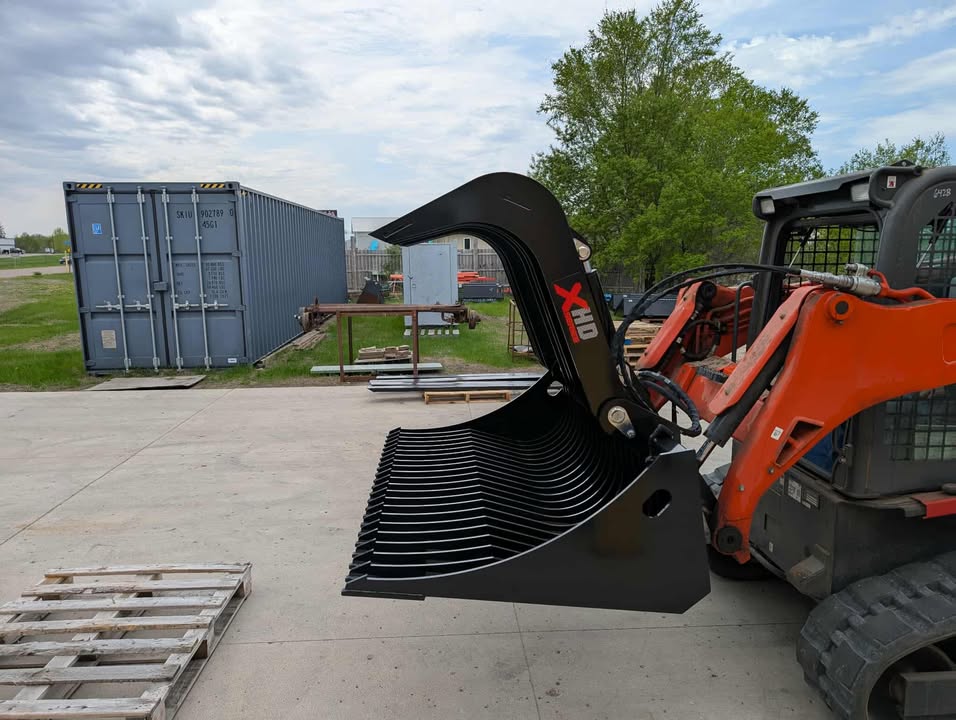

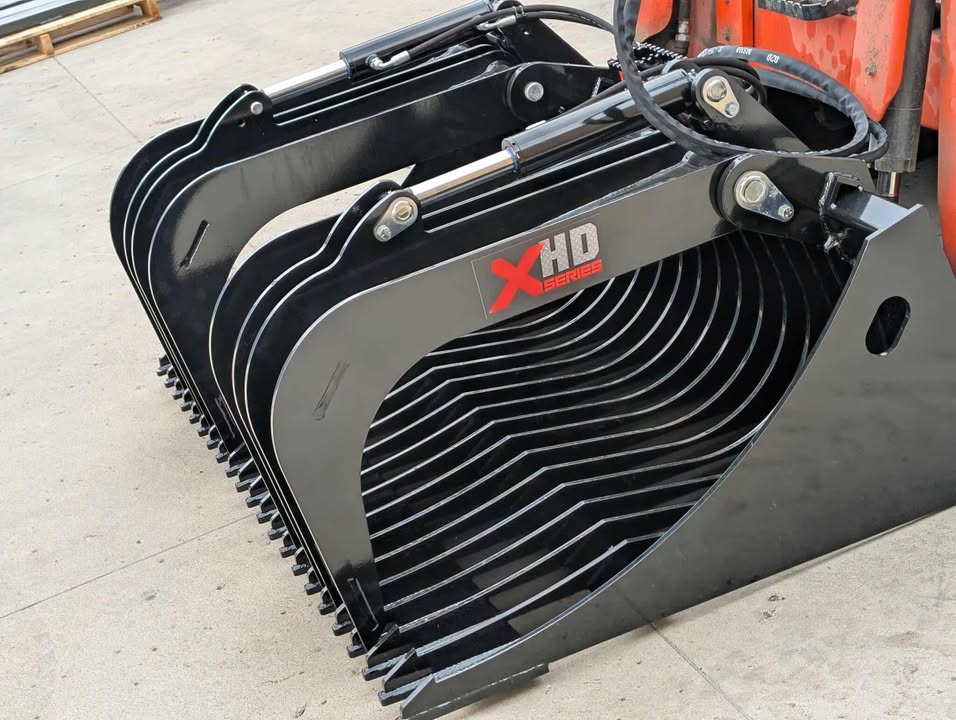

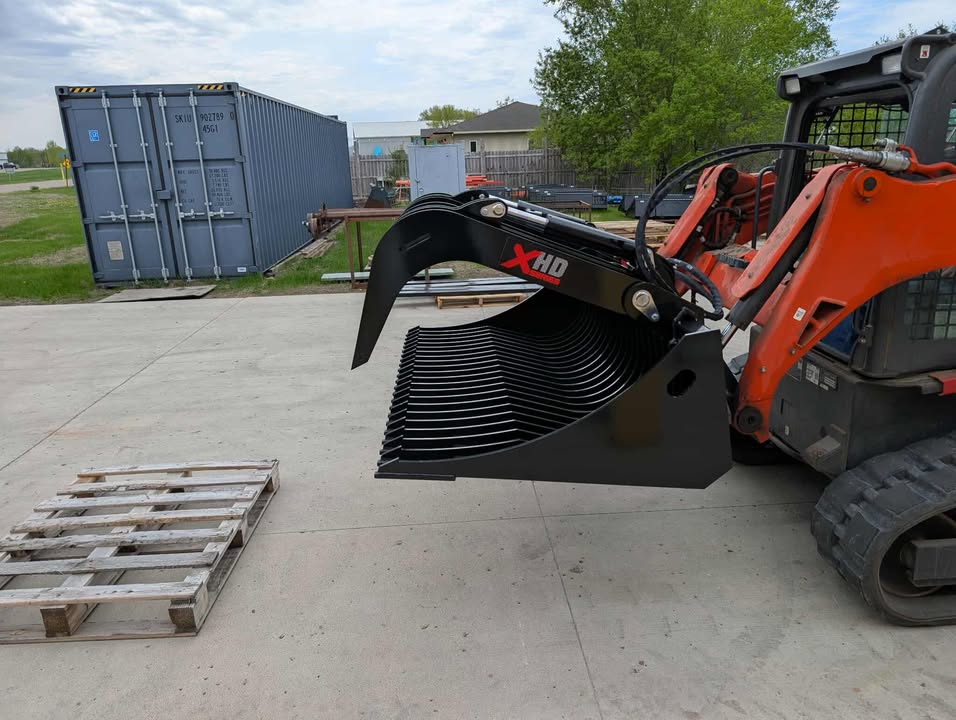

45" 2 Tine Model #33103
45" 4 Tine Model #33077
58" 9 Tine Model #33076
72" 11 Tine Model #33071
Excellent for digging out & moving stumps & rocks
Tines can be flipped for brush & manure work
Hoses & Couplers included
Overall Width
Overall Height - Closed
Overall Height - Open
Overall Depth
Grapple Opening
Depth of Bucket
Tines
Bucket
Thickness
Bottom Plate
Grapple Arms
Cylinders
Hydraulic Couplers
Hydraulic Hoses
PSI Max
Pivot Points
Main Pin
Rear Cylinder Pin
Front Cylinder Pin
Weight
45", 45", 58¼", 71½"
28-3/4"
42-1/2"
39"
34"
26"
1-1/4" T-1 Steel - Replaceable
3/4"&1/2" Grade 50 Frame Work
Laser Cut
1/2" Grade 50
1/" Grade 50 - Laser Cut
3" Bore
Flat Face
1/2"
3,000 PSI
Grease Zerks
2" x 20"
1" x 6"
1" x 5.5"
45" = 685lbs, 45" 4 Tine = 798lbs
58" = 1389lbs, 72" = 1525lbs
